Residential & Commercial

Covers are typically used inside buildings or in building surroundings, where high level of design is required. Recessed access covers are suitable for a thin floor surfaces in thickness up to 15 mm. The cover must be filled-up with concrete of required strength class in order to achieve declared load bearing capacity. Double sealed for excellent water and odour tightness.

Additional anti-theft protection is provided by locking screws, located in tiny corner elements of the cover.

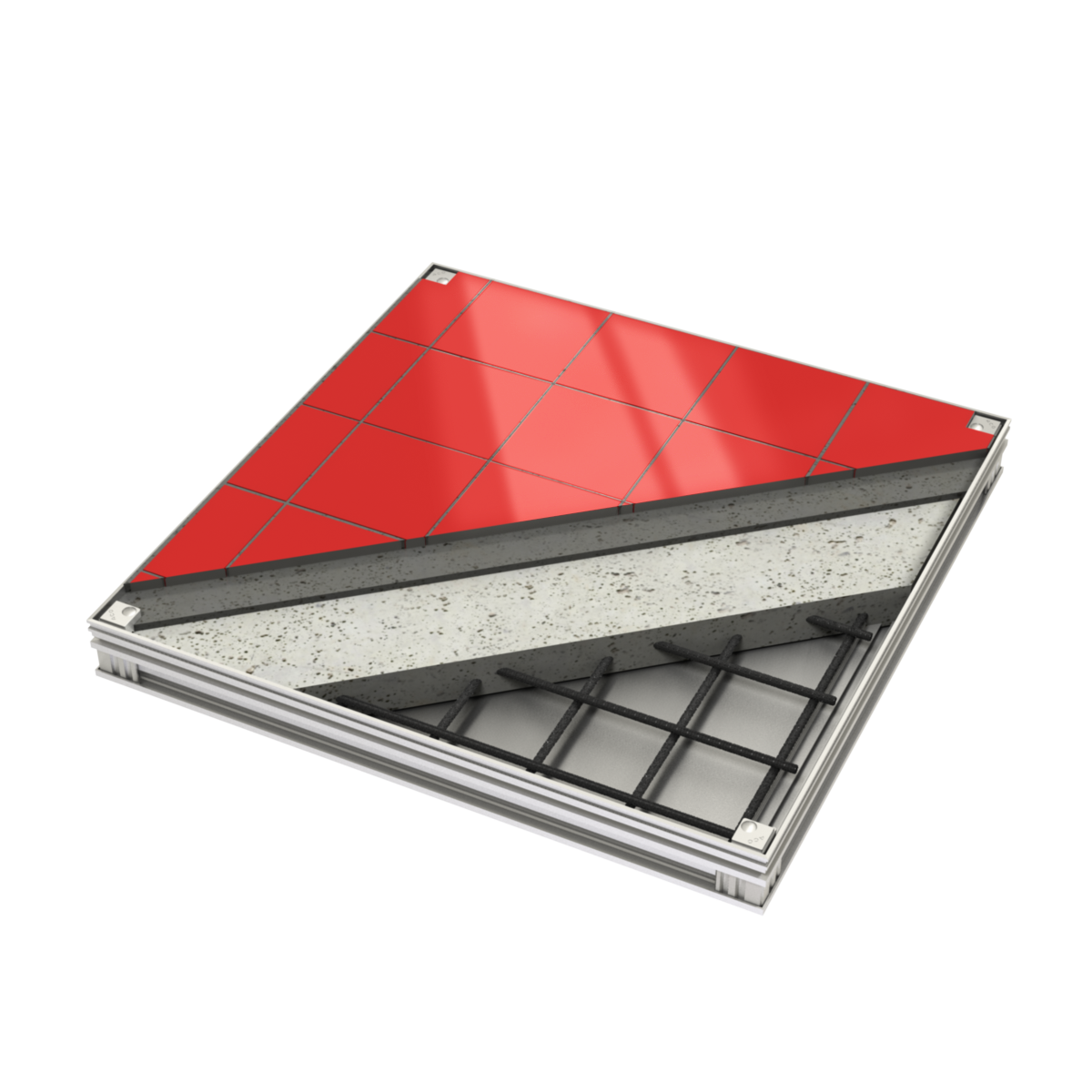

UNIFACE Single
UNIFACE Multi
UNIFACE Assist
UNIFACE fire resistant

Tested with space for tiles height 15 mm and for pavement bricks and natural stone up to height 65 mm
Water-tight and odour-tight tested according to EN 1253-4
Secure installation – good connection with concrete (profiled frame or anchors)
Corrosion resistant
Discreet product after installation
Optionable with opening assistance
Multi cover available as custom made

UNIFACE Fire Resistance:

In the event of fire, closing the ACO Access Covers resists fire to protect the area above the cover, this significantly contributing to the protection of local areas and floors
tested for fire resistance classes E120, EI₁120, EI₂120
the integrity of fire resistance has been performed and assessed by the authorised laboratory PAVUS a.s. (authorised body AO 216) according to EN 1634-1 + A1, EN 1363-1, ČSN 73 0810

PAVING Single
PAVING Multi
PAVING Assist
PAVING Fire Resistance

Typically specified for use outside buildings, for pedestrian areas, driveways and car parks. Recessed access covers for a pavement, natural stone or bitumen infill in height up to 120 mm
Strong supports are welded underneath of the cover
Load capacity up to load class C250 for all clear openings up to 1 m
No concrete or any other additional structural infill necessary
Equipped with a seal
Water-tight and odour-tight tested according to EN 1253-4
No concrete or any other additional structural infill necessary
Optionable with opening assistance
Multi cover available as custom made

PAVING Fire Resistance:

In the event of fire, closing the ACO Access Covers resists fire to protect the area above the cover, this significantly contributing to the protection of local areas and floors
Fire resistance E120, EI₁45, EI₂45 (tested according to EN 1634-1 + A1, EN 1363-1, ČSN 73 0810) assured by fire resistance equipment

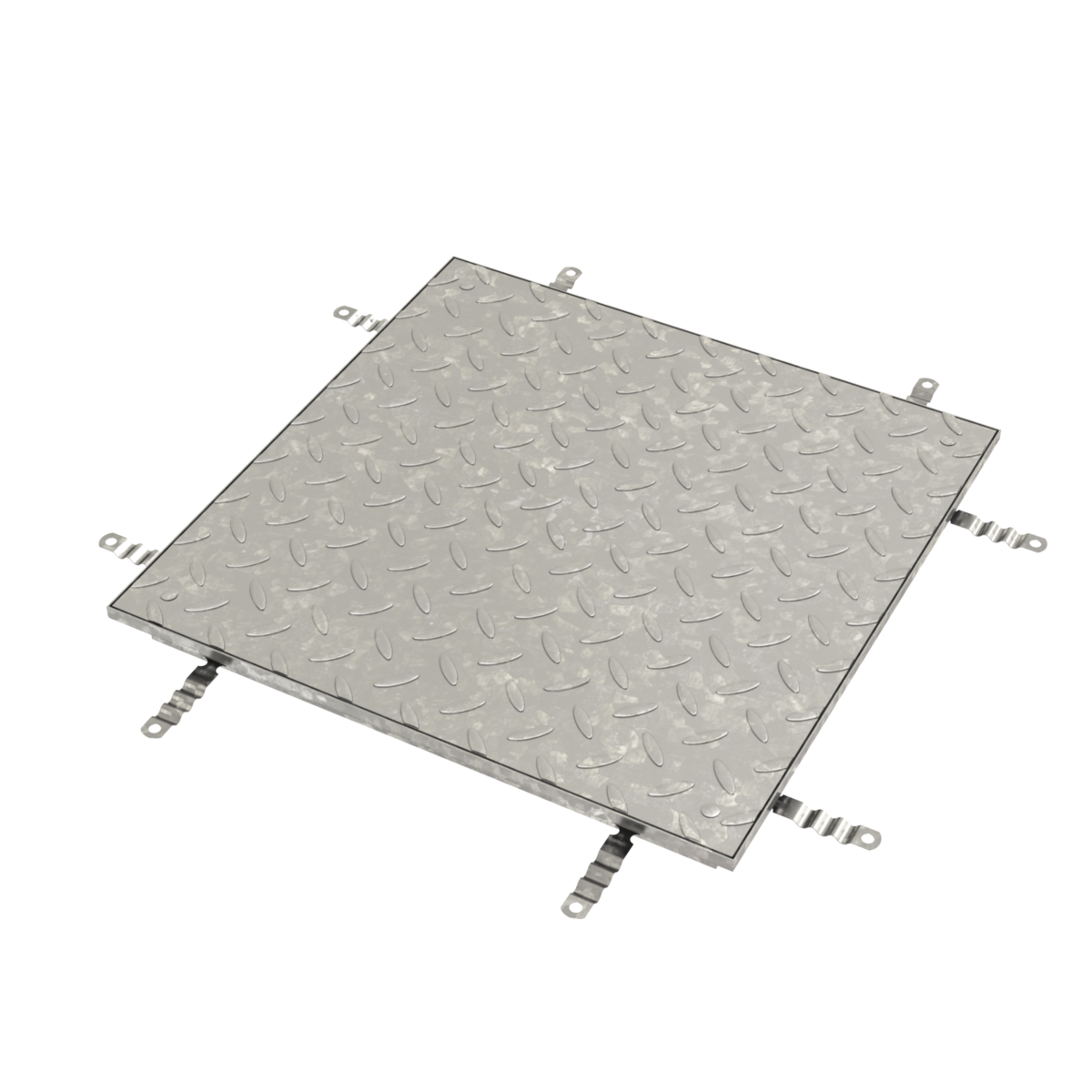

SOLID Single
SOLID Multi
SOLID Assist
SOLID Fire Resistance

Suitable for light industrial applications, where simple and lightweight covers are required. Surface of the cover is formed by anti slip tread “checker” plate. Optimized supports are welded underneath of the cover which guarantee declared load capacity.
Load capacity tested and certified according to EN 124
Corrosion resistant
Water-tight and odour-tight tested according to EN 1253-4
Secure and time saving installation
Optionable with opening assistance
Multi cover available as custom made

SOLID Fire Resistance:

In the event of fire, closing the ACO Access Covers resists fire to protect the area above the cover, this significantly contributing to the protection of local areas and floors
Fire resistance E120, EI145, EI₂45 (tested according to EN 1634-1 + A1, EN 1363-1, ČSN 73 0810) assured with a fire resistance equipment
Covers are equipped by single seal
