ACO Access Covers UNIFACE - Single

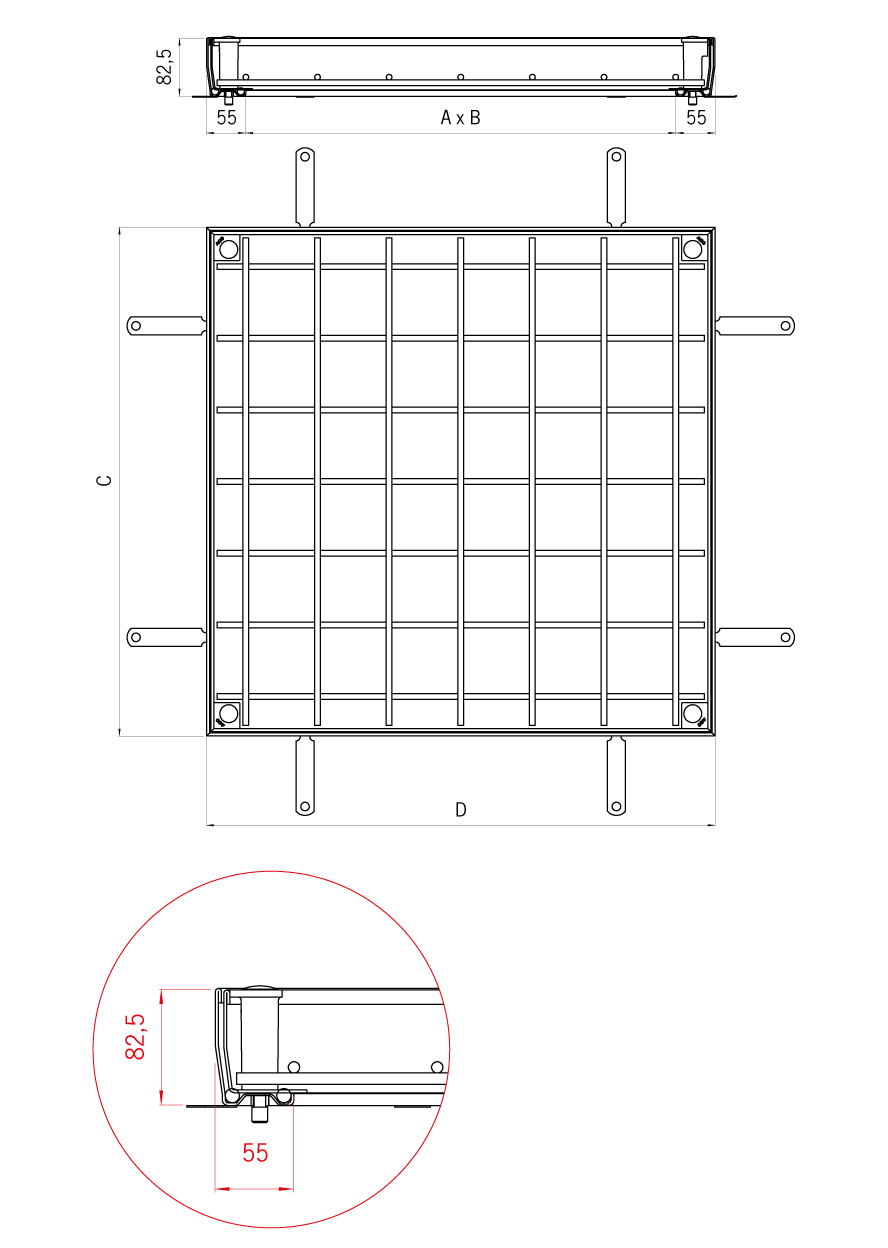

ACO Access Cover UNIFACE 2.0 GS/SS

  • Meets declared load class up to C250 for all clear openings up to 1 m
  • Hot dip galvanized mild steel (≥ 60 µm of zinc) or pickle passivated stainless steel
  • Preciseness, design
  • Thanks to unique bending on the top no additional stripes for installation necessary
  • Easy opening after installation
  • Less friction between frame and cover
  • No sharp edges – improved safety
  • Rolled profiles for galvanized version of the cover are made from innovative material UltraSTEEL®. It helps significantly reduce weight of the cover while maintaining the strength, stability and stiffness of the product.
  • Rolled profiles for stainless steel version are made from conventional steel sheet in thickness 2 mm.
  • Covers are double sealed for excellent water- and odour-tightness.

Find out more about ACO UNIFACE 2.0 GS/SS at:
Online catalogue

ACO Access Covers Catalogue 2020

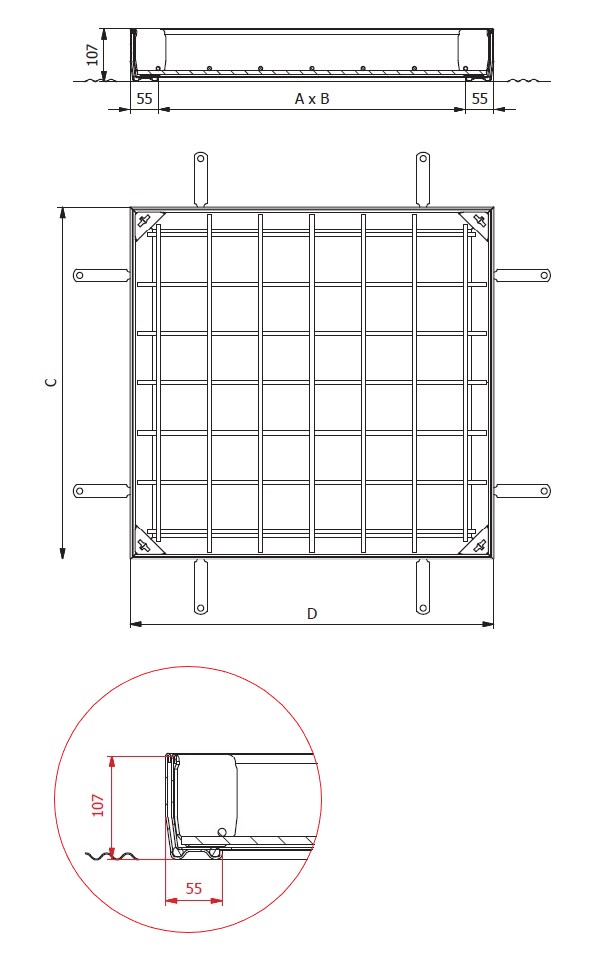

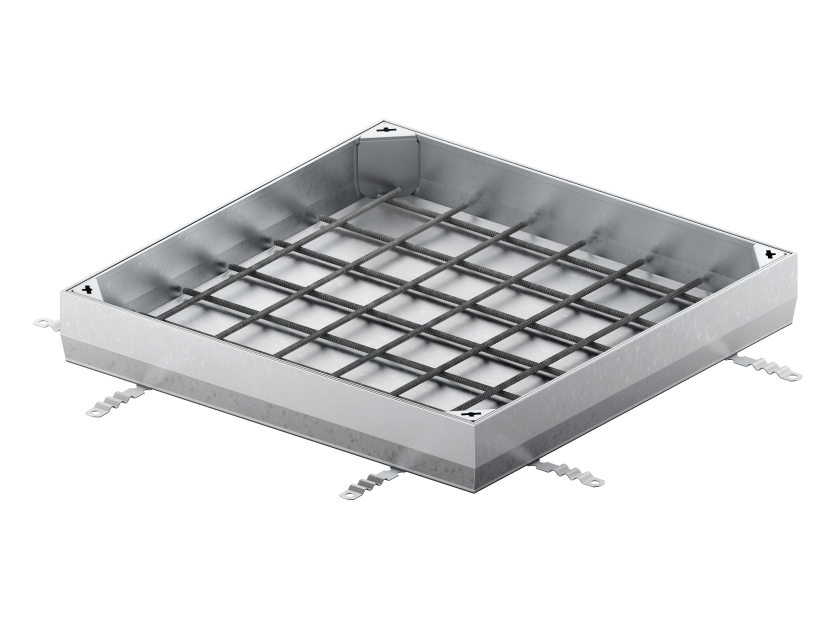

ACO Access Cover UNIFACE DEEP 35

  • Meets declared load class up to B125 for all clear opening up to 1 m dimensions
  • Deeper cover allows infill of tiles, paving blocks, or natural stones up to thickness of 35 mm (adheasive included)
  • No risk – load class capacity guaranteed and certified
  • Secured in the frame by its own weight
  • Trouble-free removal and assembly
  • Corrosion resistant - Hot dip galvanized mild steel (≥ 60 µm of zinc) or pickle passivated stainless stee
  • Preciseness design
  • Less friction between frame and cover
  • No sharp edges – improved safety
  • Rolled profiles for galvanized version of the cover are made from innovative material UltraSTEEL®. It helps significantly reduce weight of the cover while maintaining the strength, stability and stiffness of the product
  • Rolled profiles for stainless steel version are made from conventional steel sheet in thickness 2 mm
  • Covers are double sealed for excellent water and odour-tightness

Find out more about ACO Access Cover UNIFACE DEEP 35 at:
Online catalogue

ACO Access Covers Catalogue 2020

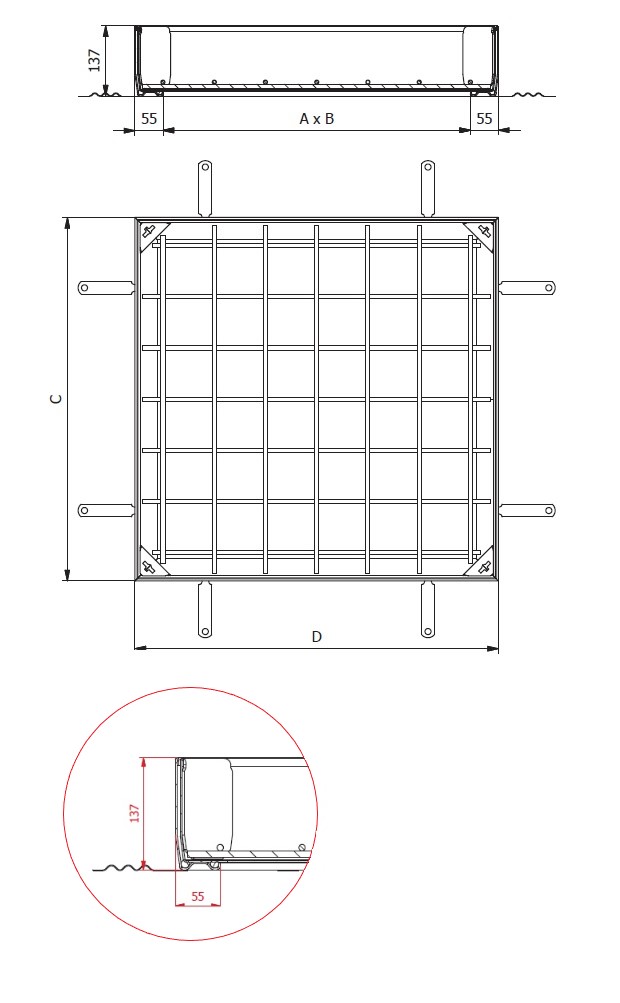

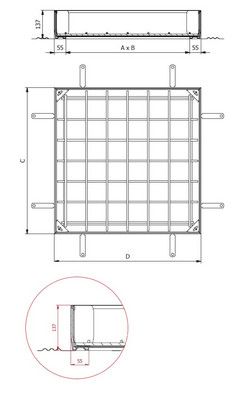

ACO Access Cover UNIFACE DEEP 65

  • Meets declared load class up to B125 for all clear opening up to 1 m dimensions
  • Deeper cover allows infill of tiles, paving blocks, or natural stones up to thickness of 65 mm (adheasive included)
  • No risk – load class capacity guaranteed and certified
  • Secured in the frame by its own weight
  • Trouble-free removal and assembly
  • Corrosion resistant - Hot dip galvanized mild steel (≥ 60 µm of zinc) or pickle passivated stainless stee
  • Preciseness design
  • Less friction between frame and cover
  • No sharp edges – improved safety
  • Rolled profiles for galvanized version of the cover are made from innovative material UltraSTEEL®. It helps significantly reduce weight of the cover while maintaining the strength, stability and stiffness of the product
  • Rolled profiles for stainless steel version are made from conventional steel sheet in thickness 2 mm
  • Covers are double sealed for excellent water and odour-tightness

Find out more about ACO Access Cover UNIFACE DEEP 35 at:
Online catalogue

ACO Access Covers Catalogue 2020

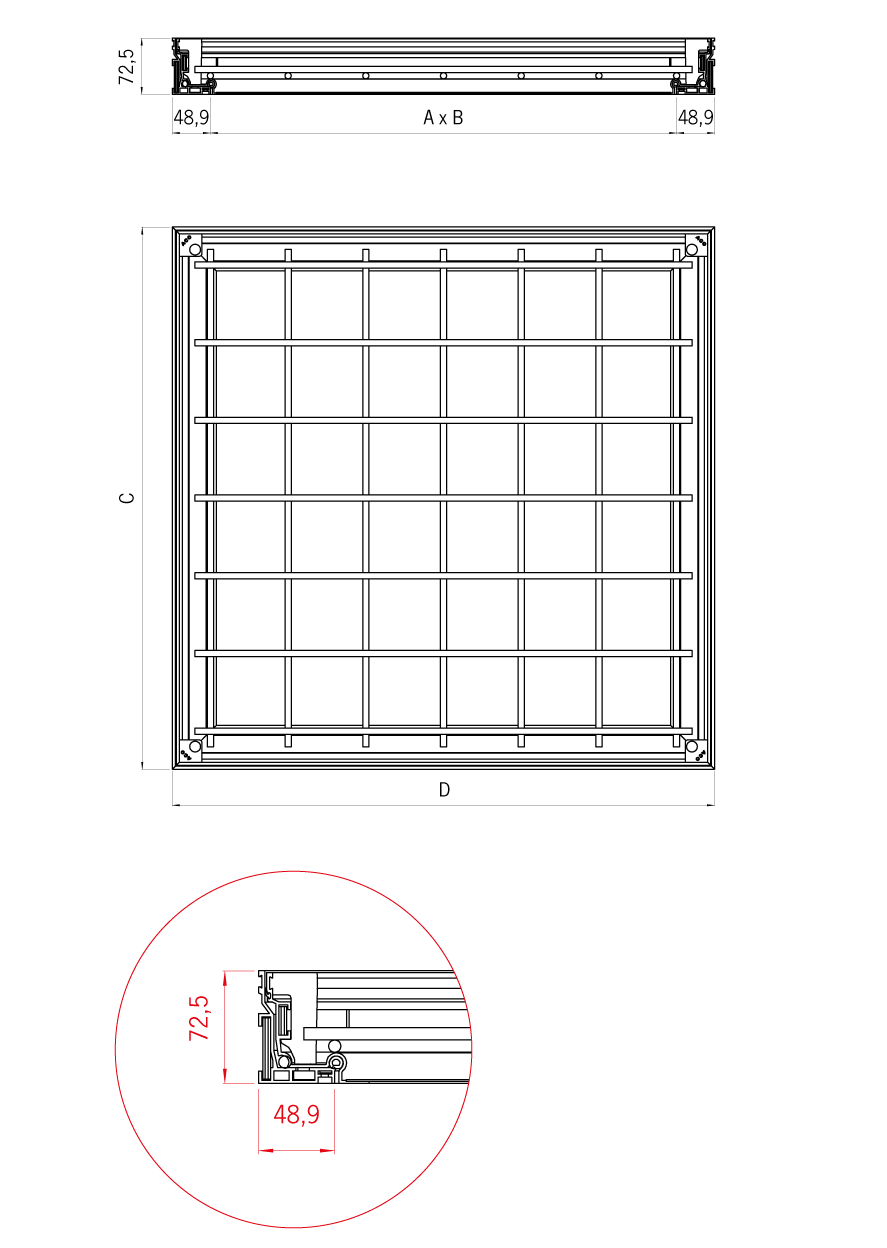

ACO Access Cover UNIFACE AL

  • Excellent optic aesthetics
  • Meets declared load class up to M125
  • Corrosion resistant aluminium alloy
  • Precision thanks to crimping (mechanical fixing)
  • 2+1 sealing – water/odour tight+sand/ dust tight
  • Easy opening – prevents blockage
  • Easy installation – positioning of the cover in frame
  • Tiny tolerances, perfect fit
  • Very small corner parts (30×30 mm)
  • Brass nut to prevent blockage
  • Reinforcement in optimal position

Find out more about ACO UNIFACE AL at:
Online catalogue

ACO Access Covers Catalogue 2020

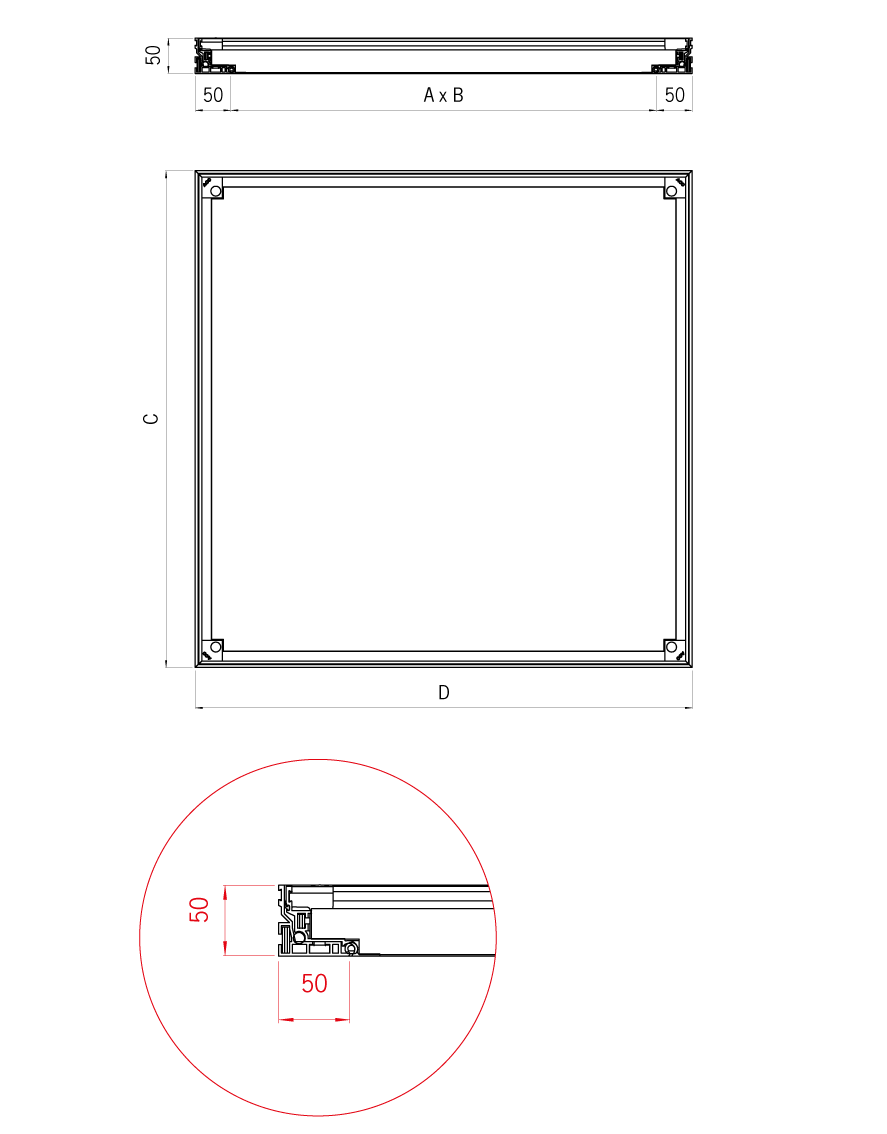

ACO Access Cover UNIFACE AL shallow

  • For an application in floor screed (50 mm)
  • No impact on structure slab
  • Weight of installed cover reduced to 2/3 compare to standard AL cover
  • Load capacity L15 for cover fully filled with concrete
  • Load capacity K3 for cover with tiles in thickness up to 15 mm

Find out more about ACO UNIFACE AL shallow at:
Online catalogue

ACO Access Covers Catalogue 2020

ACO Access Cover UNIFACE SMART AL

  • Lightweight cover with structural composite infill (no concrete necessary)
  • Load capacity L15 with tiles in thickness up to 15 mm
  • Weight of installed cover reduced to 1/2 compare to shallow AL cover
  • Easy manipulation
  • One man operation
  • Secure and time saving installation
  • No risk – load capacity always guaranteed

Find out more about ACO UNIFACE SMART AL at:
Online catalogue

ACO Access Covers Catalogue 2020
