Industrial & Infrastructure

Covers are suitable for light industrial applications, where simple and lightweight covers are required. Surface of the cover is formed by anti-slip tread “checker” plate.

Optimized supports, welded underneath the cover, guarantee declared load bearing capacity.

Covers are water and odour tight.

PAVING Single
PAVING Multi
PAVING Assist
PAVING Fire Resistance

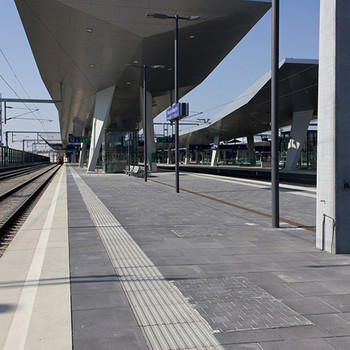

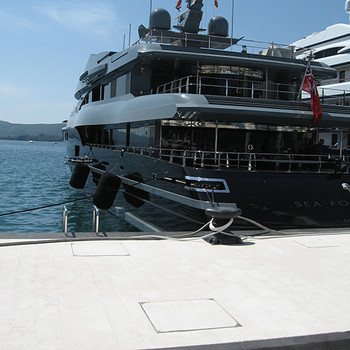

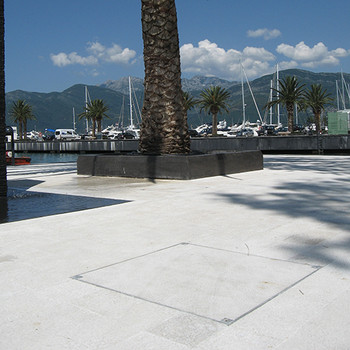

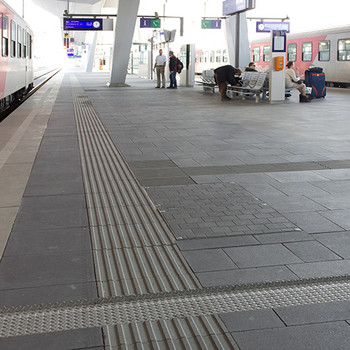

Typically specified for use outside buildings, for pedestrian areas, driveways and car parks. Recessed access covers for a pavement, natural stone or bitumen infill in height up to 120 mm
Strong supports are welded underneath of the cover
Load capacity up to load class C250 for all clear openings up to 1 m
No concrete or any other additional structural infill necessary
Equipped with a seal
Water-tight and odour-tight tested according to EN 1253-4
No concrete or any other additional structural infill necessary

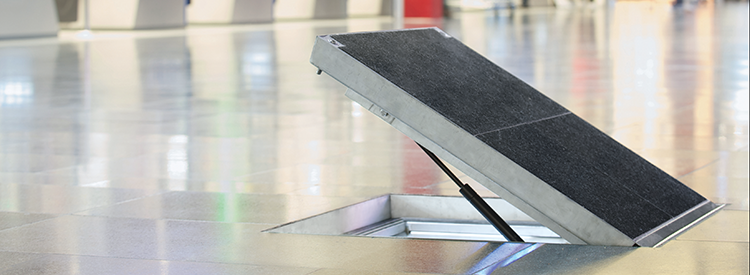

Optionable with opening assistance
Multi cover available as custom made

PAVING Fire Resistance:

In the event of fire, closing the ACO Access Covers resists fire to protect the area above the cover, this significantly contributing to the protection of local areas and floors
Fire resistance E120, EI₁45, EI₂45 (tested according to EN 1634-1 + A1, EN 1363-1, ČSN 73 0810) assured by fire resistance equipment

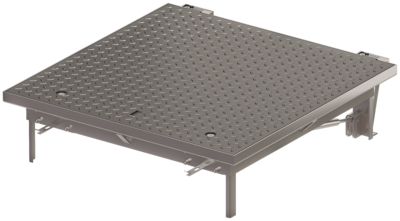

Servokat-GD 1000x1000 Normalverschluss B125 Riffel Edelstahl Gross

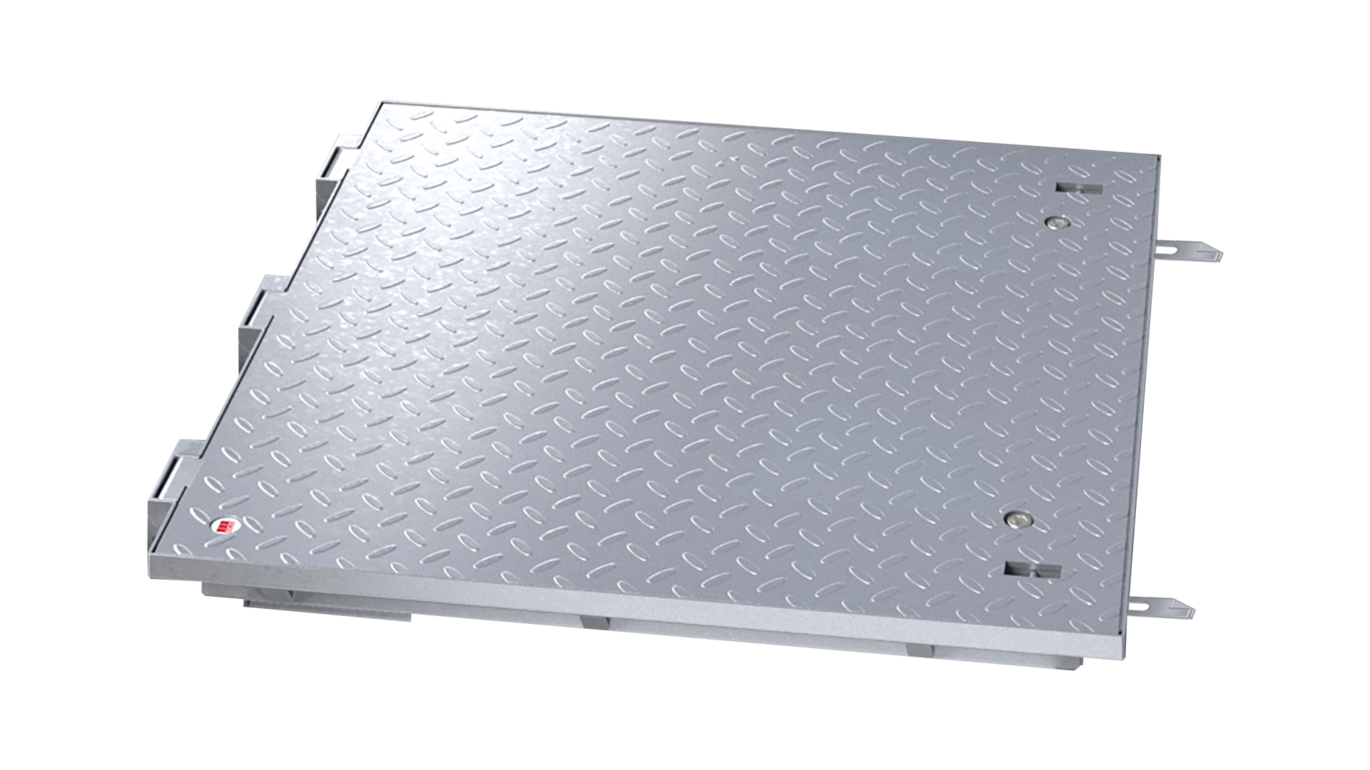

Servokat GD
Servokat GD FR

The right solution when covers have to be frequently used for maintenance or inspection purposes
Shaft cover according to DIN EN 124
Optionally with quick release for emergency exits for opening and closing from above and for quick opening without tools from below
Including operating key
With gas spring as opening aid
No risk – load capacity always guaranteed
Durable

Servokat GD Fire Resistant

The Fire resistance classification has been performed and assessed by the authorised laboratory PAVUS a.s. (authorised body AO 216) according to EN 1634-1 + A1, EN 363-1, ČSN 73 0810.
The fire resistance classification of ACO Servokat FR is declared by „Fire classification approval of fire resistance“

Type tested and certified according to EN124:2015
Meets declared load class up to D400
Opening assistance contributed by mechanical torsion springs
Easy lock and simple hinges not interfering the clear opening
Cushioning inserts reducing noise from traffic
Equipped with a seal designed to avoid water collection between the cover‘s frame and lid
Corrosion resistant – hot dip galvanized mild steel / pickled passivated stainless steel
Secure and time saving installation – no frame work application for installation
Very shallow installation height – ONLY 80 mm
