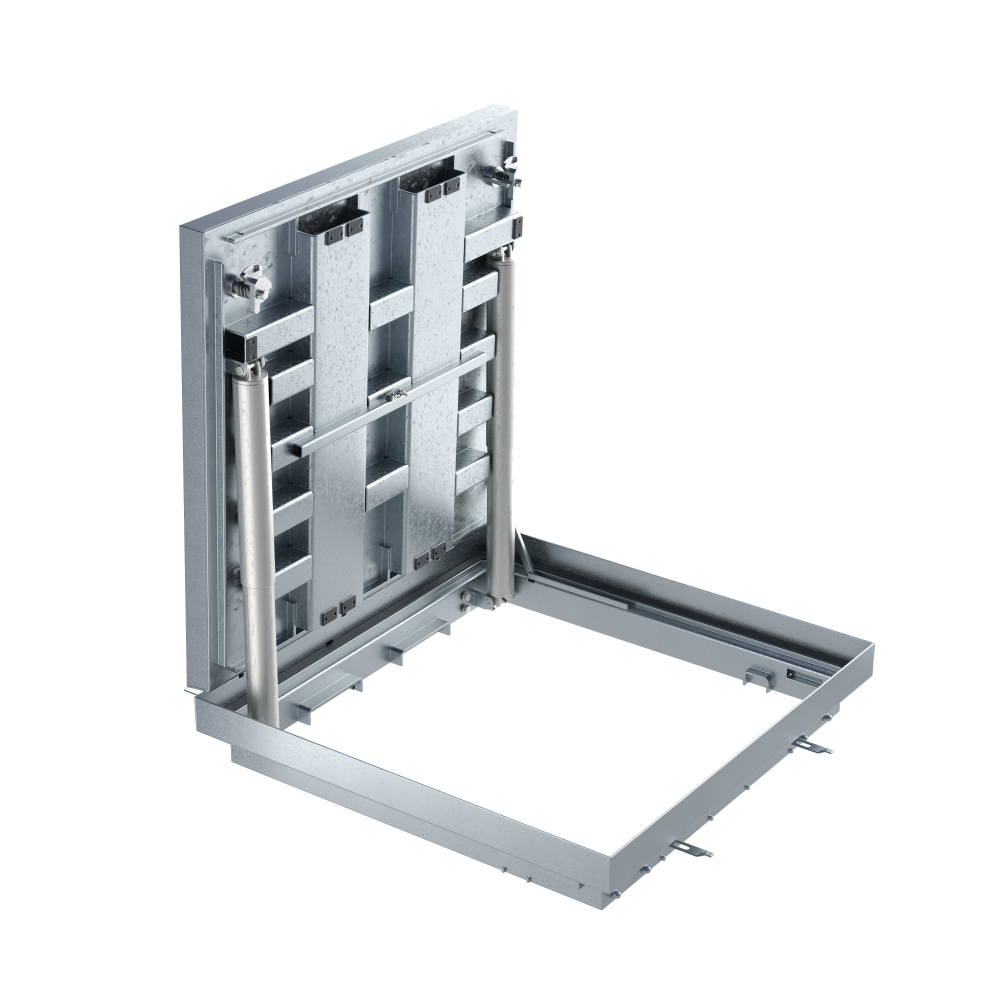

ACO Access Covers SERVOKAT MODULAR D400

SERVOKAT Modular D400 product range is designed in order to be equipped by safety components such as GS/SS grate or aluminium railing.


Video Pic

Product information

  • Type-tested and certified according to EN 124:2015
  • Meets declared load class up to D400 (declared without infill)
  • Opening assistance provided by a mechanical spring
  • Easy-lock and simple hinges that do not interfere with the clear opening
  • Cushioning inserts reduce noise from traffic
  • Corrosion-resistant – hot-dip galvanized mild steel (GS) / pickle passivated stainless steel (SS)
  • Secure and time-saving installation – no formwork application required / easy and fast assembly of mechanical springs
  • Water Guard function– water flow control away from sensitive technologies
  • Watertightness tested (not certified) according to EN 1253-4*

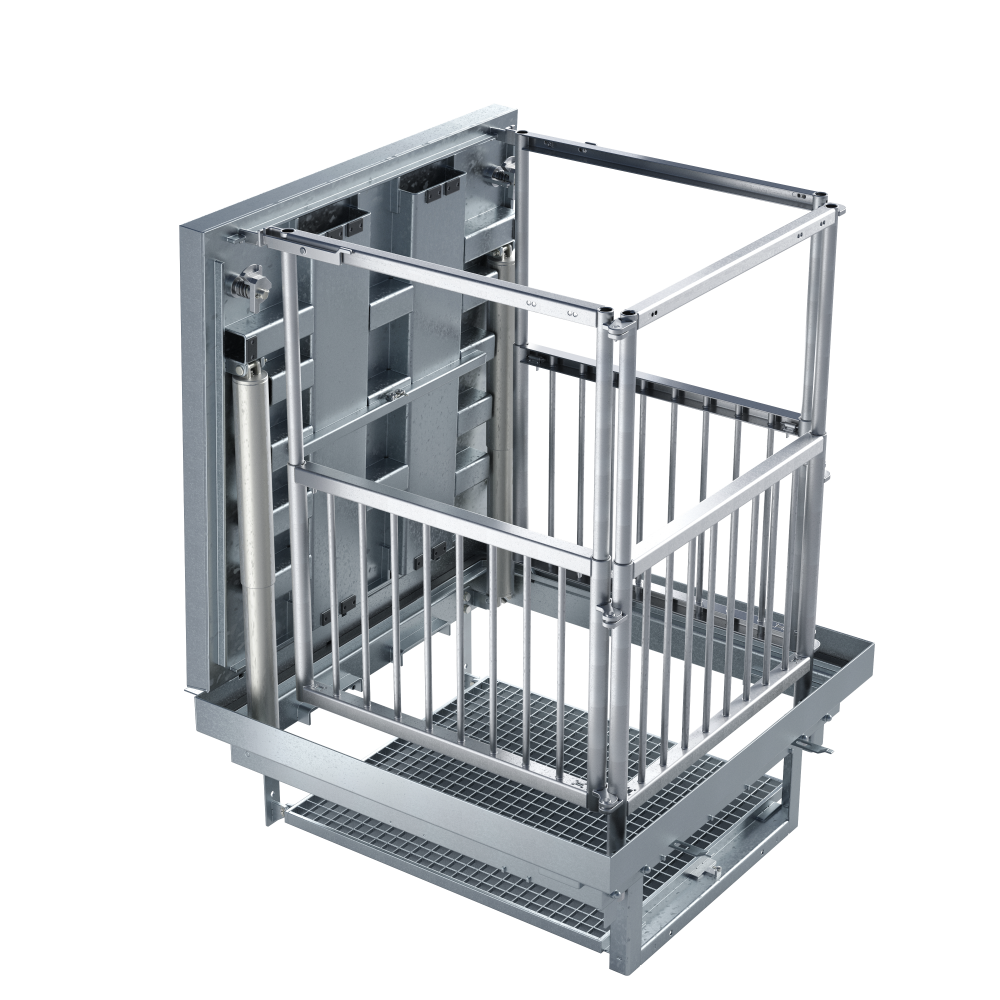

  • Modular design – protecting lightweight aluminum railing and GS/SS grate as standard equipment

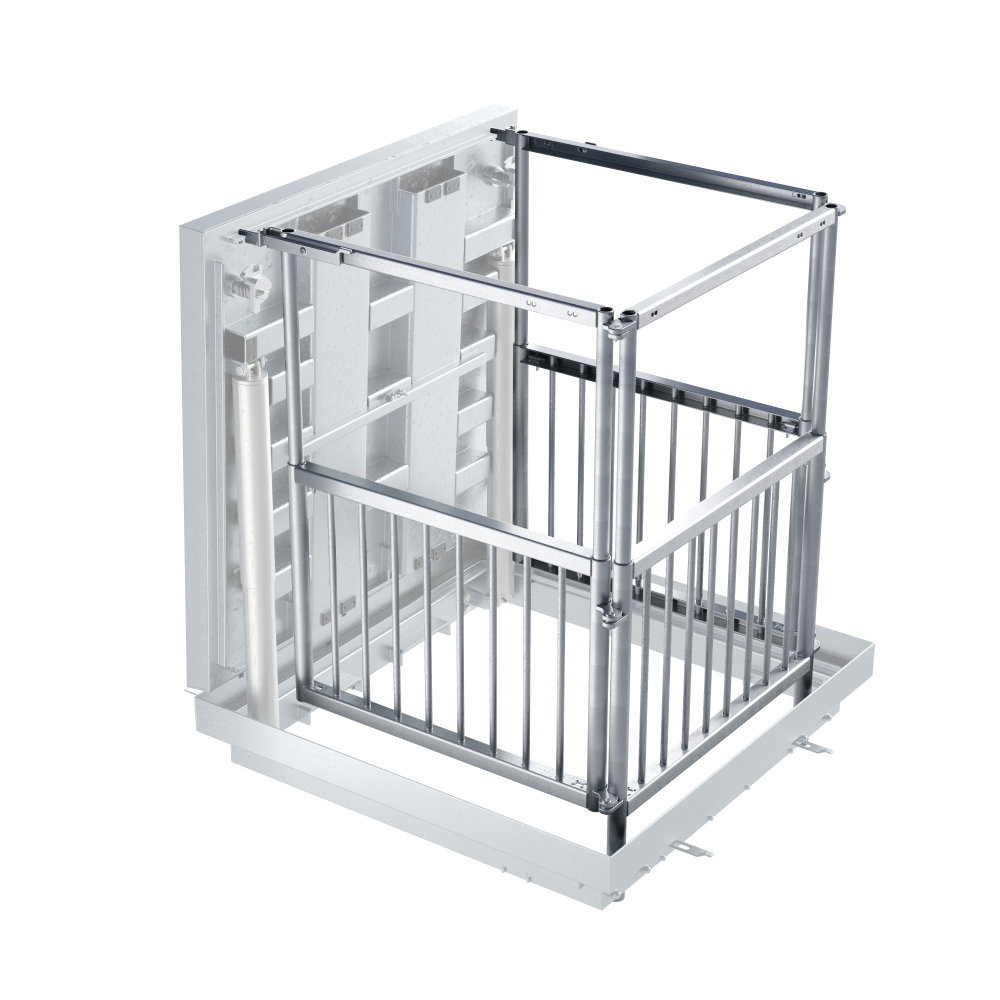

  • Railing – provides full protection when the cover is opened, with two-sided access, 1,1m height and foldable/telescopic assembly

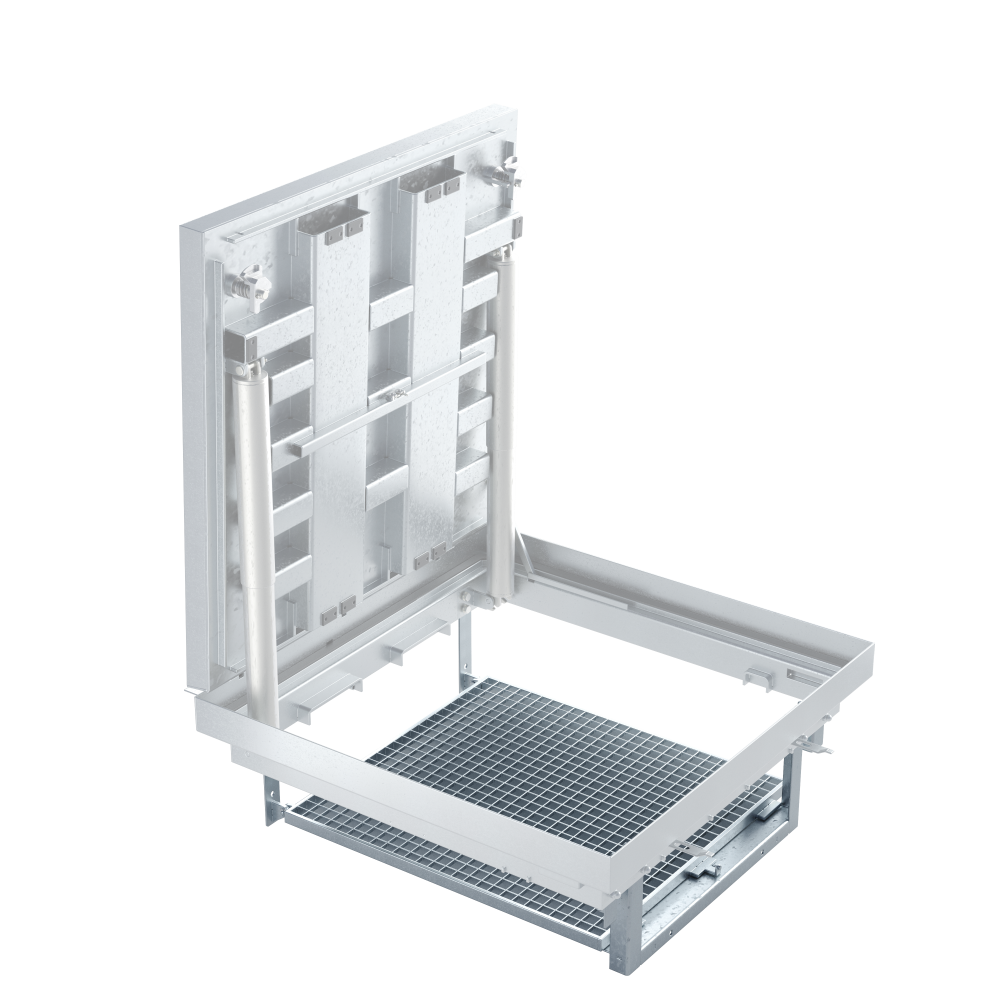

  • Grate – one side is hinged and secured when opened
  • Mechanical spring designed for concrete C35/45 infill; different material infill must be communicated in advance in order to design a suitable mechanical spring
  • Installation – the access cover must be installed according to the installation instructions to ensure full functionality of the cover equipment

*Watertightness test procedure acc. to EN 1253-4: water flooding 10±1 mm for time period 15±1m – no leak of water to the bottom side of cover supervised by Authorized body 204
